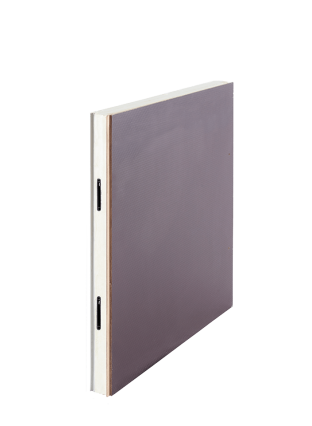

Cold Room Floor Panel
A cold room floor panel forms an insulated base within a refrigerated enclosure, helping limit heat transfer through the floor. Its construction must also accommodate the room’s storage layout, cleaning routine and daily traffic.
Frigovetta Refrigeration System manufactures cold room floor panels with plywood, stainless steel and chequered aluminium options. Material selection depends on operating conditions, moisture exposure and how people or handling equipment move through the room.
Materials and Surface Finishes

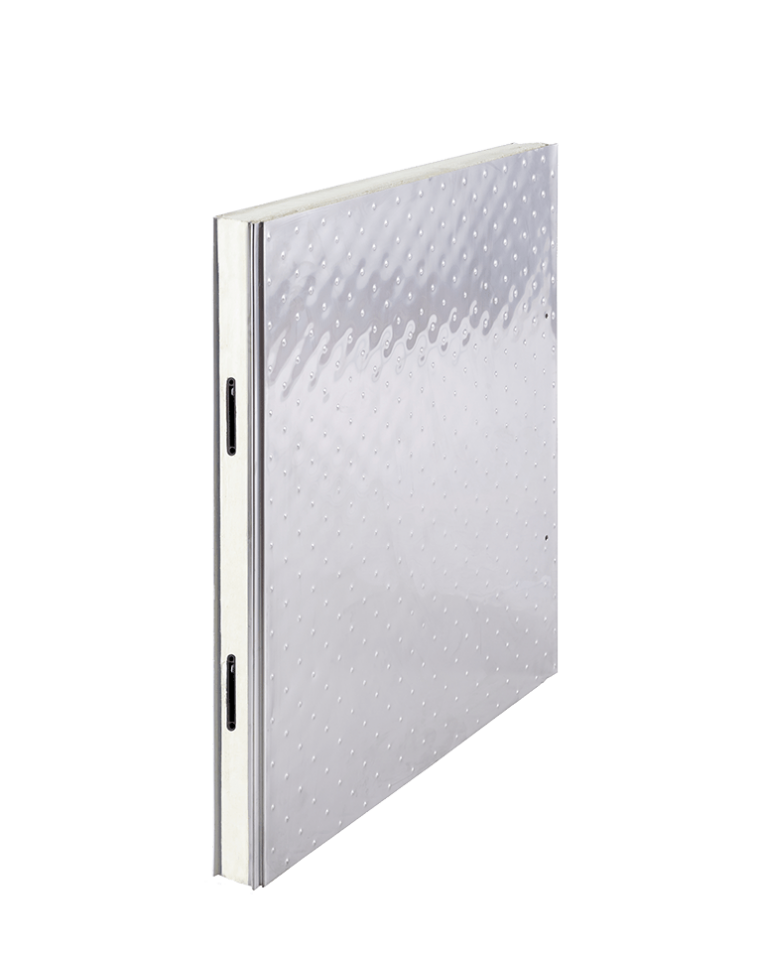

Stainless steel is an option for projects that prioritise a cleanable metal finish. The selected grade, surface finish and cleaning products should suit the intended environment.

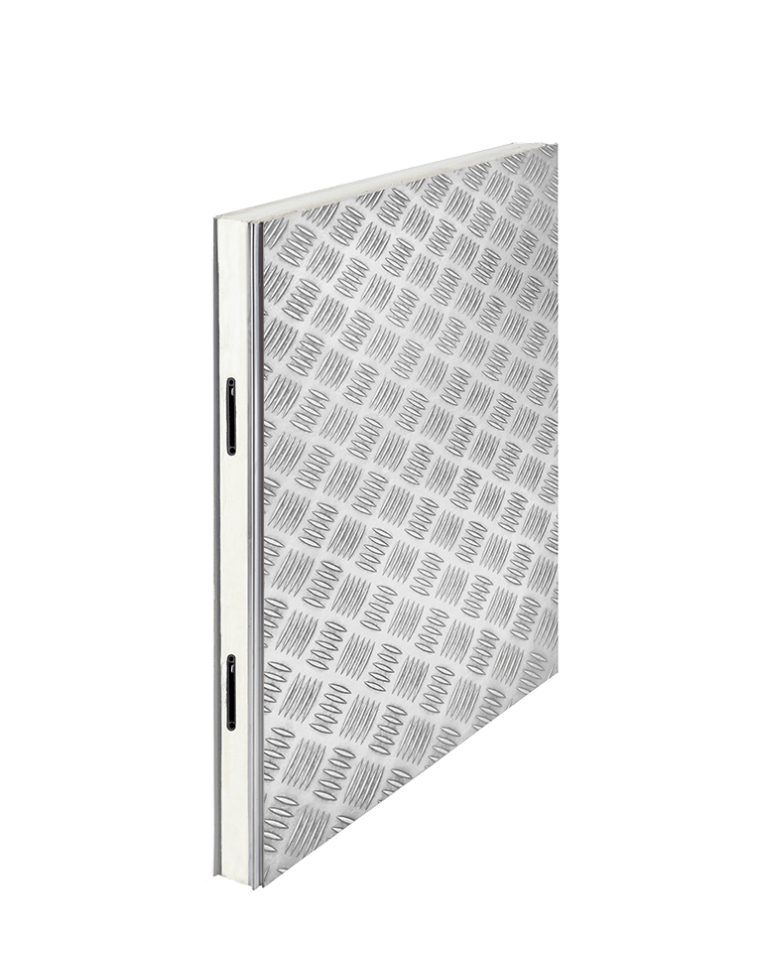

Chequered aluminium, also known as aluminium tread plate, provides a raised-pattern metal surface. It offers an alternative finish for refrigerated storage and service areas, with selection based on traffic, cleaning requirements and the supporting floor construction.

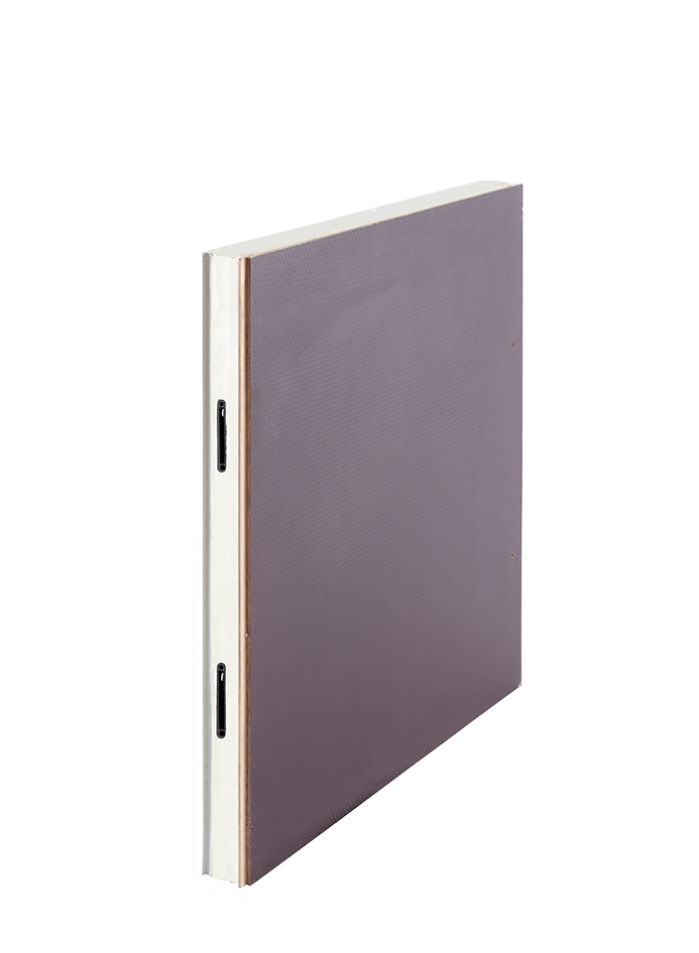

The role of plywood within the panel, its surface treatment and protection against moisture depend on the selected floor construction. These details should be considered together when specifying the floor.
Floor Selection for Different Applications
Commercial kitchens, food storage rooms and refrigerated service areas place different demands on flooring. A room used mainly by staff requires a different assessment from one carrying loaded trolleys or concentrated loads beneath shelving feet.
Floor selection should account for load distribution, wheel contact areas and frequency of movement. Stainless steel or chequered aluminium alone does not determine carrying capacity; the complete panel construction and supporting base must suit the intended use.
Integration with Cold Room Panels and Doors
Floor levels, perimeter joints and doorway transitions should be planned as part of the complete room installation. Where Cam-Lock Cold Room Panels are used, floor connections must match the specified panel system.
Threshold details should also be coordinated with Hinged Cold Room Doors or Sliding Cold Room Doors to provide an appropriate transition for pedestrian access and handling equipment.
Share your room dimensions, operating temperature, preferred finish and loading requirements with Frigovetta Refrigeration System to discuss a suitable cold room floor panel.
| Feature | Description |
|---|---|
| Product Type | Insulated cold room floor panel |
| Material Options | Plywood, stainless steel and chequered aluminium |
| Surface Selection | Based on cleaning requirements, moisture exposure and traffic conditions |
| Plywood Configuration | Position, surface treatment and moisture protection depend on the selected construction |
| Panel Thickness and Dimensions | Defined in the project specification |
| Operating Conditions | Floor construction selected to suit the specified room temperature and environment |
| Load Assessment | Distributed storage loads, concentrated shelving loads and wheel loads |
| Installation Interface | Floor joints, perimeter connections and door thresholds coordinated with the room design |
- Helps limit heat gain through the base of the refrigerated room.
- Offers material choices for different cleaning routines and operating conditions.
- Allows floor and doorway details to be coordinated with the cold room layout.
