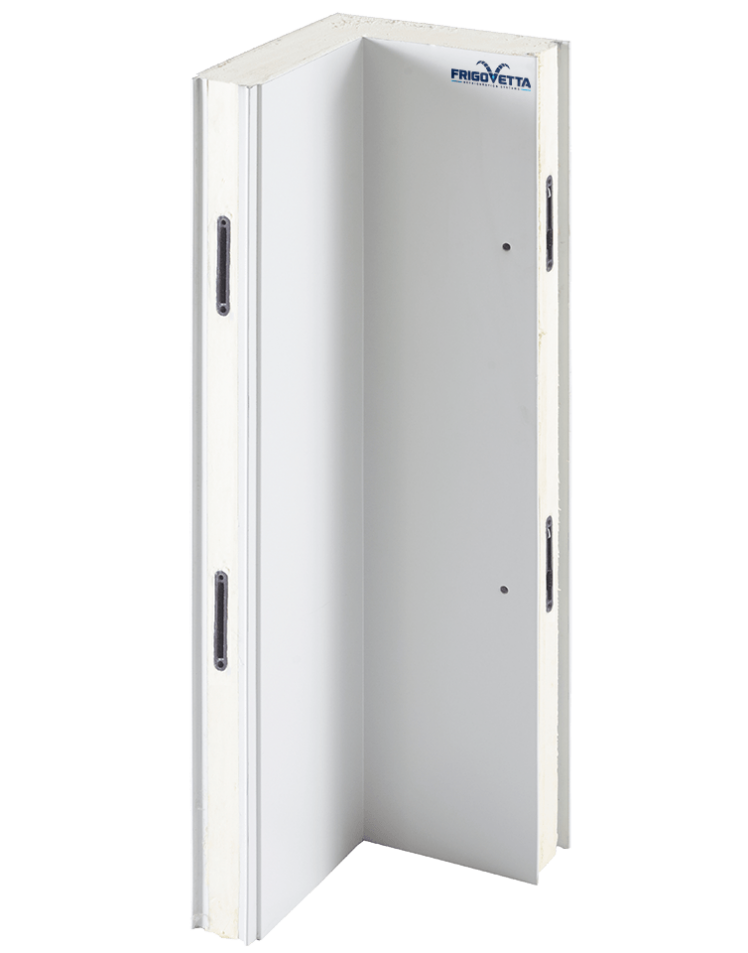

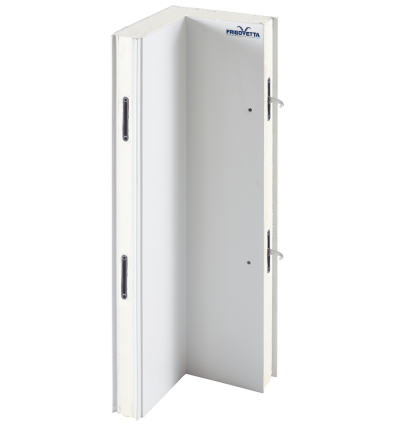

Cold Room Corner Panel
A cold room corner panel forms an insulated connection between adjoining walls where the enclosure changes direction. It connects the surrounding wall panels, with dimensions and joint details matched to the selected panel system.
The corner detail coordinates insulation continuity, wall alignment and surface finish at a junction that requires careful planning during cold room construction.
Insulated Corner Construction
The insulation core helps limit heat transfer through the corner element. Joint design and sealing between the corner panel and adjacent walls also contribute to the performance of the completed enclosure.
Panel thickness, core material and surface finish should suit the operating conditions and match the adjoining construction. The corner assembly must be considered together with the wall system when specifying the refrigerated space.
Compatibility with Cold Room Panels
The corner panel’s dimensions and edge profiles must fit the wall layout. Correct positioning helps align adjacent panels and establish the room’s internal dimensions.
In an enclosure using cam-lock cold room panels, the corner connection should be specified for that system. The locking and sealing arrangement must be checked for compatibility with the adjoining panels.
Matching these details helps create a consistent transition between wall sections.
Layout and Installation
Include corner dimensions when planning wall lengths, door positions and connections to the floor and ceiling. A properly prepared base and accurate setting-out help the components meet as intended.
Surface finishes and joint treatment should reflect cleaning requirements and moisture exposure. Installation should follow the selected panel system’s requirements for alignment, connections and sealing.
Contact Frigovetta Refrigeration System with your room layout, wall-panel specification, operating temperature and preferred surface finish to discuss a suitable cold room corner panel.
Corner Panel Overview
| Feature | Specification |
|---|---|
| Product type | Insulated cold room corner panel |
| Manufacturer | Frigovetta Refrigeration System |
| Primary function | Forms the transition between adjoining cold room walls |
| Corner geometry | Defined according to the enclosure layout |
| Panel dimensions | Coordinated with room dimensions and adjoining wall panels |
| Edge profiles | Matched to the selected panel system |
| Connection method | Defined by the compatible panel arrangement |
| Joint sealing | Specified according to the enclosure system |
| Insulation core and thickness | Defined by the selected product specification |
| Surface finish | Coordinated with adjoining panels and cleaning requirements |
| Thermal suitability | Assessed as part of the complete refrigerated enclosure |
Exact dimensions, materials, connection details and performance ratings must be confirmed for the selected corner panel.
- Insulated corner junction: Provides an insulated component where adjoining cold room walls change direction.
- Panel alignment: Matching dimensions and connection profiles help position adjacent wall panels correctly.
- Consistent surface transition: Coordinated corner geometry and finishes connect adjoining wall surfaces within the enclosure.
