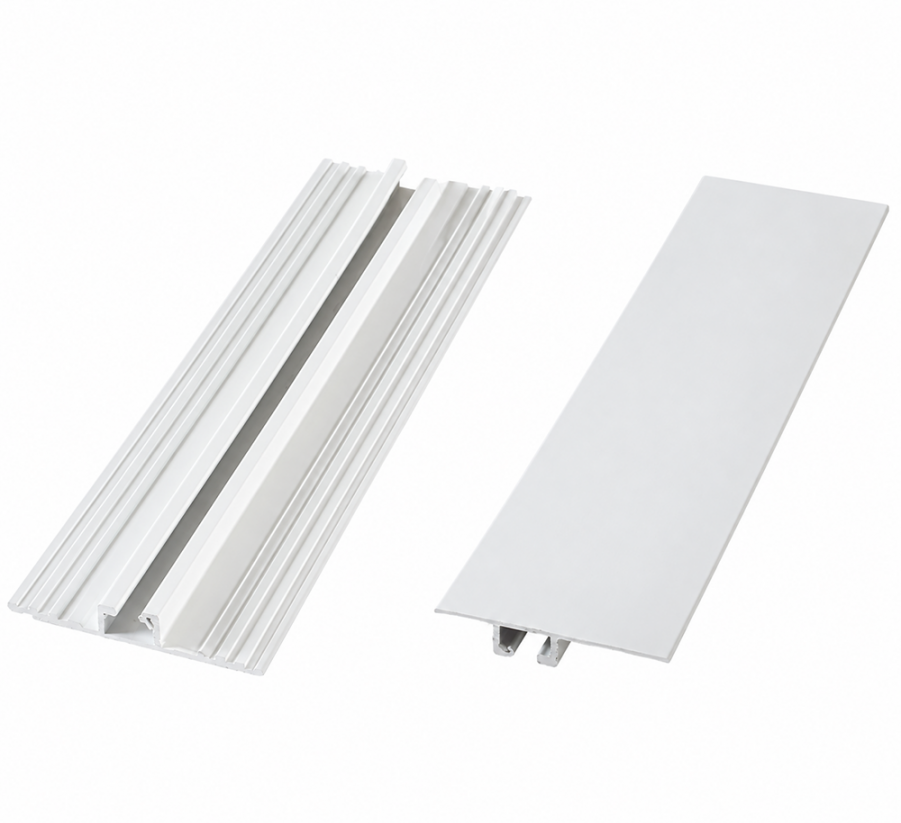

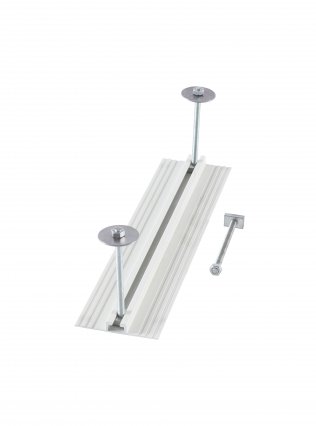

Cold Room Ceiling T-Hanger
A cold room ceiling T-hanger supports insulated ceiling panels as part of an overhead suspension assembly. The T-shaped profile provides a bearing surface for panels and connects through compatible suspension components to the supporting building structure.
Frigovetta Refrigeration System manufactures cold room ceiling T-hangers for suspended panel installations. Profile selection and support spacing depend on the panel specification, ceiling layout and design loads.
Support for Insulated Ceiling Panels
Ceiling suspension profiles provide additional support where required by the panel span and installation layout. The profile and suspension connections work together to transfer ceiling loads to designated structural fixing points.
Compatibility with Cold Room Panels must be checked against panel thickness, joint geometry and the specified bearing detail. The complete assembly—including hangers, fixings and the supporting structure—determines the appropriate support arrangement.
Chilled and Frozen Storage Applications
Suspended ceiling assemblies can be used in positive-temperature cold rooms and negative-temperature freezer rooms. Materials, connection details and sealing must suit the operating conditions and surrounding environment.
Thermal bridging and vapour sealing should be considered at suspension penetrations and panel junctions. These details help maintain the continuity of the insulated enclosure and require coordination with the ceiling installation.
Coordinated Ceiling Installation
The ceiling layout should account for panel spans, suspension locations and access requirements. Loads from refrigeration equipment, pipework or maintenance access require separate assessment from the ceiling-panel load.
Share your ceiling dimensions, panel specification and support layout with Frigovetta Refrigeration System to discuss a suitable cold room ceiling T-hanger arrangement.
| Feature | Description |
|---|---|
| Product Type | T-profile for insulated ceiling panel suspension |
| Primary Function | Provides panel bearing and support within a suspension assembly |
| Assembly Interface | Compatible suspension components and structural fixings |
| Panel Compatibility | Matched to panel thickness, joint geometry and bearing detail |
| Material and Finish | As specified for the selected profile |
| Profile Dimensions | Defined in the product drawing |
| Load Capacity | Established for the complete support assembly |
| Support Spacing | Based on panel span, design loads and structural requirements |
| Application | Chilled and frozen storage installations, subject to the selected specification |
- Provides a defined bearing surface for insulated ceiling panels.
- Enables additional ceiling support where required by the panel layout.
- Connects panel support lines with overhead structural fixing points.
